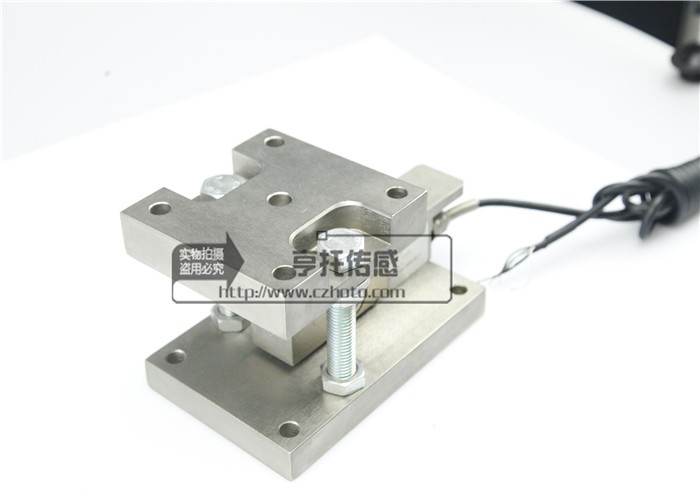

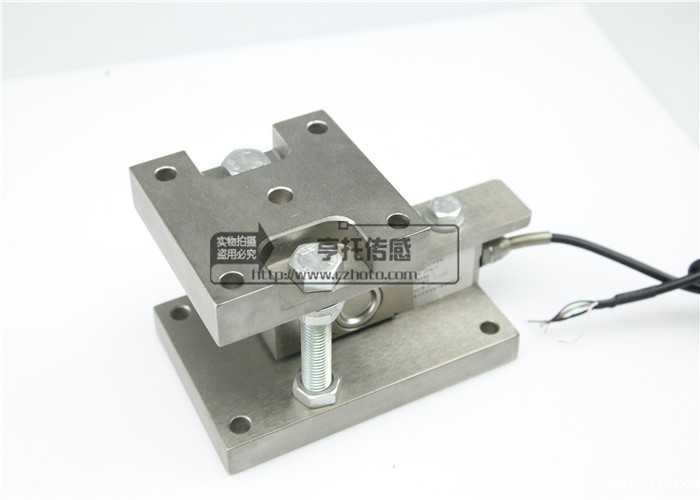

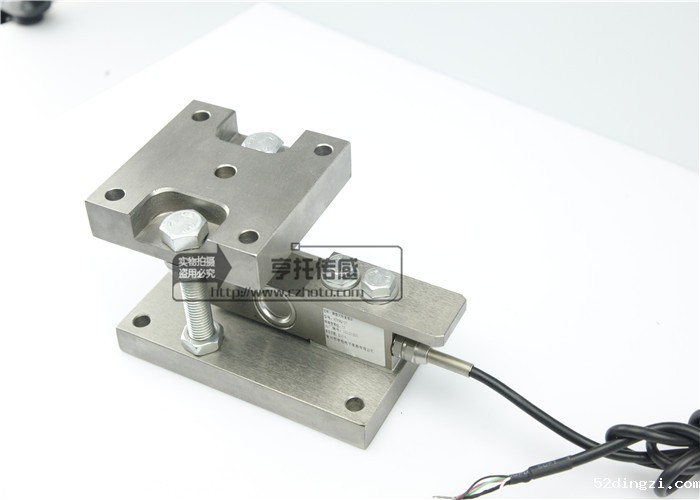

This weighing module is economical and greatly reduces costs. Suitable for a wide range of technical and technical parameters of small and medium-sized enterprises:
|
Rated load：0.25，0.3，0.5，0.75，1，1.5，2，2.5，3，5，7.5，10t |
Temperature compensation range：-10℃~+40℃ |
|
Sensitivity： 3.0±0.003mV/V（0.5~10t）2.0±0.002mV/V（0.25~0.3t） |
Working temperature compensation：-30℃~+70℃ |
|
Accuracy level：C2~C5 |
Safety overload： 150％F.S |
|
|
Ultimate overload： 180％F.S |
|
Zero balance：±1％F.S |
Recommended intense voltage：10-12V DC |
|
Zero temperature effect：±0.02％F.S/10℃ |
Anti-sealing level： IP68 |
|
Output temperature effect：±0.02％F.S/10℃ |
Material： Alloy steel |
|
input resistance：400±20Ω |
cable： 3m,5m |
|
Output impedance：352±3Ω |
|
|
Insulation resistance：≥5000MΩ |
|
-
FWQ Economic weighing module -
FWQ Economic weighing module -
FWQ Economic weighing module
